LC Series

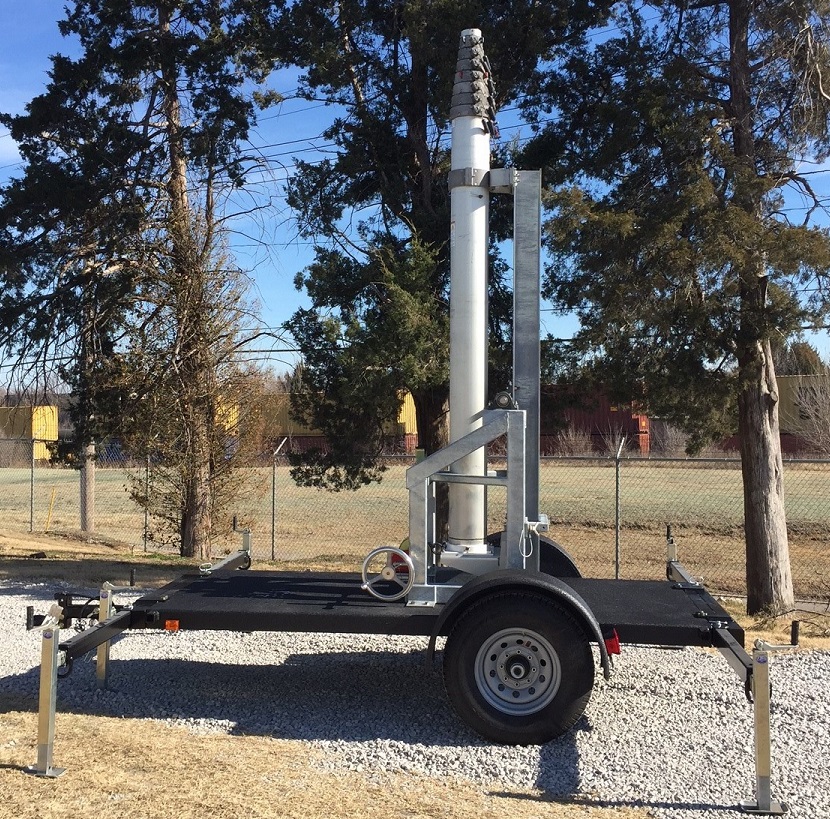

- Single Torflex Axle Trailer; Light Duty, Primary Road Transport and Deployment Capabilities; All Steel Constructed; Assembled Containerization
- 3,000 lb (1,361kg) Capacity GVWR; to 500 lb (227 kg) Payload Capacity; Outrigger Stabilization; 16” (41cm) 10-ply Tires with Steel Wheels, 7,000 lb (3,175 kg) Capacity Each Landing Gear and Outrigger Jacks
- Transport Dimensions: +13’0”L x 6’0”W x 6’7”H (4m L x 1.8m W x 2m H); Deployed Dimensions: +13’0”L x 10’6”W (4mL x 3.2m W)
- Removable Drawbar; D-ring Tie-Down Provisions; 12V/24V LED Trailer Lighting; 7-Way Vehicle Connector
- Manual Hand Crank or Limit Switch Controlled Electric Winch Tilt Assembly; Pneumatic Hand Pump or Optional Compressor Driven Mast Operation
- Heavy-duty Locking Pneumatic Mast, Self-support Capabilities; Height to 60’0” (18m), Payload to 200 lbs (91kg)
